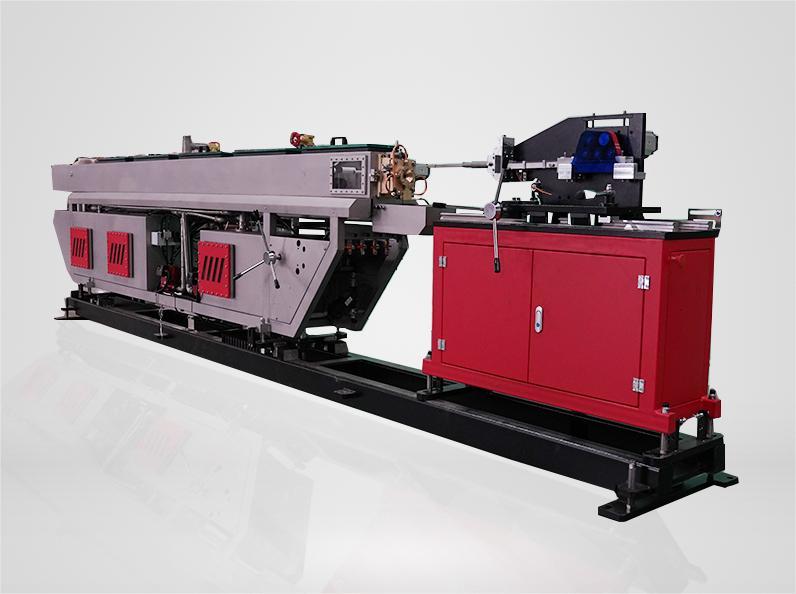

Inlaid Flat Dripper Drip Irrigation Pipe Production Line

Inlaid Flat Dripper Drip Irrigation Pipe Production Line

Equipped with advanced dripper conveying and storage device, automatic dripper screening, 1500W screening motor, pneumatic centrifugal screening method, conveying dripper speed greater than 2000 pieces/min.

Classification:

Drip Irrigation Machinery

Key words:

Drip Irrigation Pipe Production Line

Inlaid Flat Dripper

Pressure compensating dripper production line

Inlaid flat dripper production line

Flat dripper production line

Irrigation tape drip line

More products please click directory to download:

inquiry

Description

Technical Parameters

Pipe Diameter	Pipe Thickness	Normal Production Speed	Dripper Spacing
Φ12-16-20-22-25	0.12-0.4mm 0.4-1.2mm （Optional）	360m/min	100、150、200、300、400、500、1000mm

Spacing	Normal Production Speed
300mm	360m/min
200mm	360m/min
100mm	300m/min

Production Introduction: Inlaid Flat Dripper Drip Irrigation Pipe Production Line

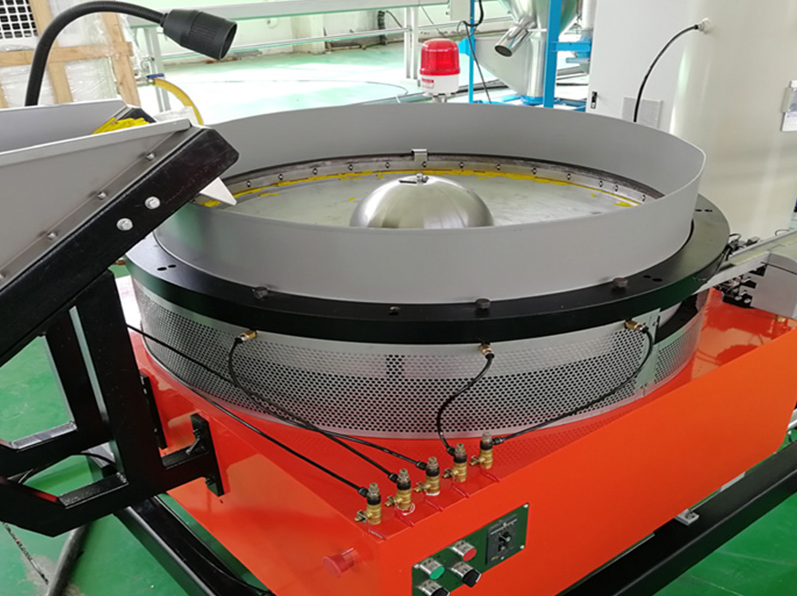

Core Component 1: Dripper Screening Device

Equipped with advanced dripper conveying and storage device, automatic dripper screen, 1500w screening motor, pneumatic centrifugal screening method. It achieves a dripper screening rate exceeding 2000 pieces/min.

Core Component 2: Dripper Conveying

The conveying channel is manufactured from aluminum alloy via pultrusion, ensuring smooth and stable high-speed transport of drippers while enabling easy replacement of wear parts;
The drive system is equipped with an AC servo motor, guaranteeing stable and precise movement throughout the dripper conveying process;
The feeding device is controlled by a servo system, which allows real-time adjustment synchronized with the production speed of the drip irrigation pipe, ensuring that the dripper spacing consistently maintains the preset value.

Core Component 3: Single-Screw Extruder

The extruder head adopts a single-stage screw design, ensuring uniform internal pressure. This improves plastic flow, enhances product gloss, and optimizes wall thickness consistency, making it suitable for high-speed production of thin-walled pipes.

Core Component 4: Hauling and punching device and control system

Fully automatic perforation unit with a maximum punching speed of >2600 holes/minute.

Equipped with an advanced visual inspection system that automatically checks the perforation results. It promptly identifies deviations, missed punches, or absence of holes, and triggers an immediate alarm.

The punching status is monitored and adjusted in real-time via the PLC control screen.

Core Component 5: Double Position Automatic Winding Device
Automatically completes the winding, roll change, and switching operations of drip irrigation pipes, with a maximum winding speed of up to 400 m/min;
Equipped with imported AC servo motors to ensure stable winding process;
Equipment operation is controlled via a PLC human-machine interface.
