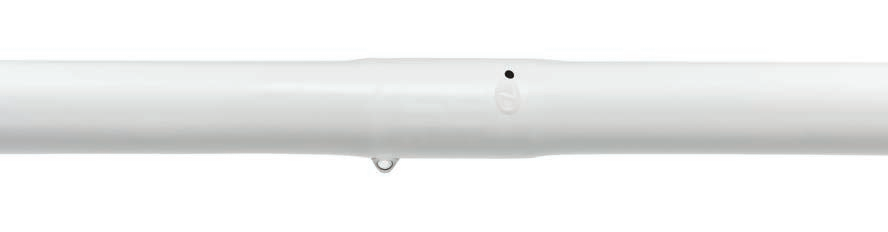

Cylindrical Dripper Drip Irrigation Pipe

Cylindrical Dripper Drip Irrigation Pipe

Classification:

Dripper & Dripline

Key words:

Cylindrical Dripper Drip Irrigation Pipe

More products please click directory to download:

inquiry

Description

Technical Parameters

Pipe Diameter	Pipe Thickness	Flow Rate	Dripper Spacing
Φ12-16-20	0.5-1.5mm (Optional)	1.6L,2L,3L,4L	300, 400, 500mm

Structure and Features:

• 16 mm and 20 mm continuous polyethylene drip irrigation pipes with integrated pressure-compensated drippers

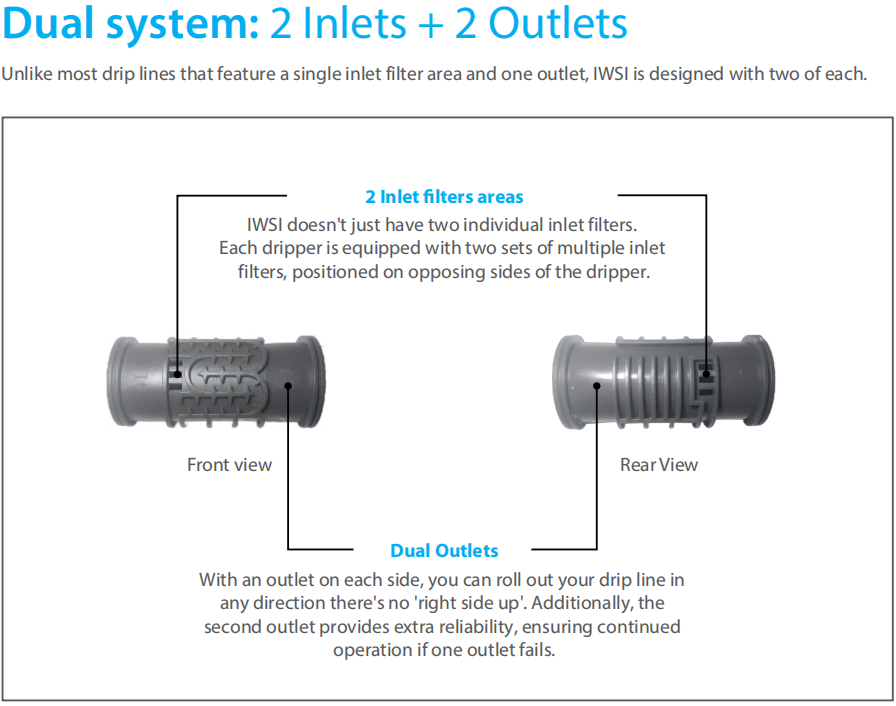

• Each dripper is equipped with dual water inlets and outlets

• Newly formulated silicone membrane to ensure accurate and reliable performance of different water qualities and chemicals The role of chemicals and fertilizers

•Special double filter and flushing mechanism to achieve maximum anti-clogging performance and self-cleaning ability

Product Description:

Our company specializes in manufacturing and supplying various types of cylindrical dripper drip irrigation pipe, including both common and pressure compensating types. The key features of our products are as follows:

1.Integration of Dripper into Pipe: The cylindrical dripper drip irrigation pipe integrates the dripper into the inner irrigation pipe, resulting in a smooth inner surface and easy installation process.

2.Effective Filtration: Equipped with a large entrance channel filter, the cylindrical dripper drip irrigation pipe exhibits excellent anti-blocking capabilities, ensuring uninterrupted water flow.

3.Turbulent Flow Design: Utilizing turbulent flow technology, our pipes offer pressure compensation capabilities, enhancing irrigation efficiency.

4.Self-Cleaning Function: Designed for high water pressure applications, the insert-type pipe generates long emitter flow within the turbulent flow, facilitating a self-cleaning function to prevent clogging.

5.Pressure Compensation Feature: Our pressure compensating drippers feature high-quality silicone sheets, ensuring stable flow rate. This makes them suitable for use in complex geographical environments and for long-distance layouts, ensuring consistent and efficient irrigation.

Applications:

• Ideal for difficult terrain or where long ridges are required

• Precision irrigation for orchards, field crops and greenhouses
